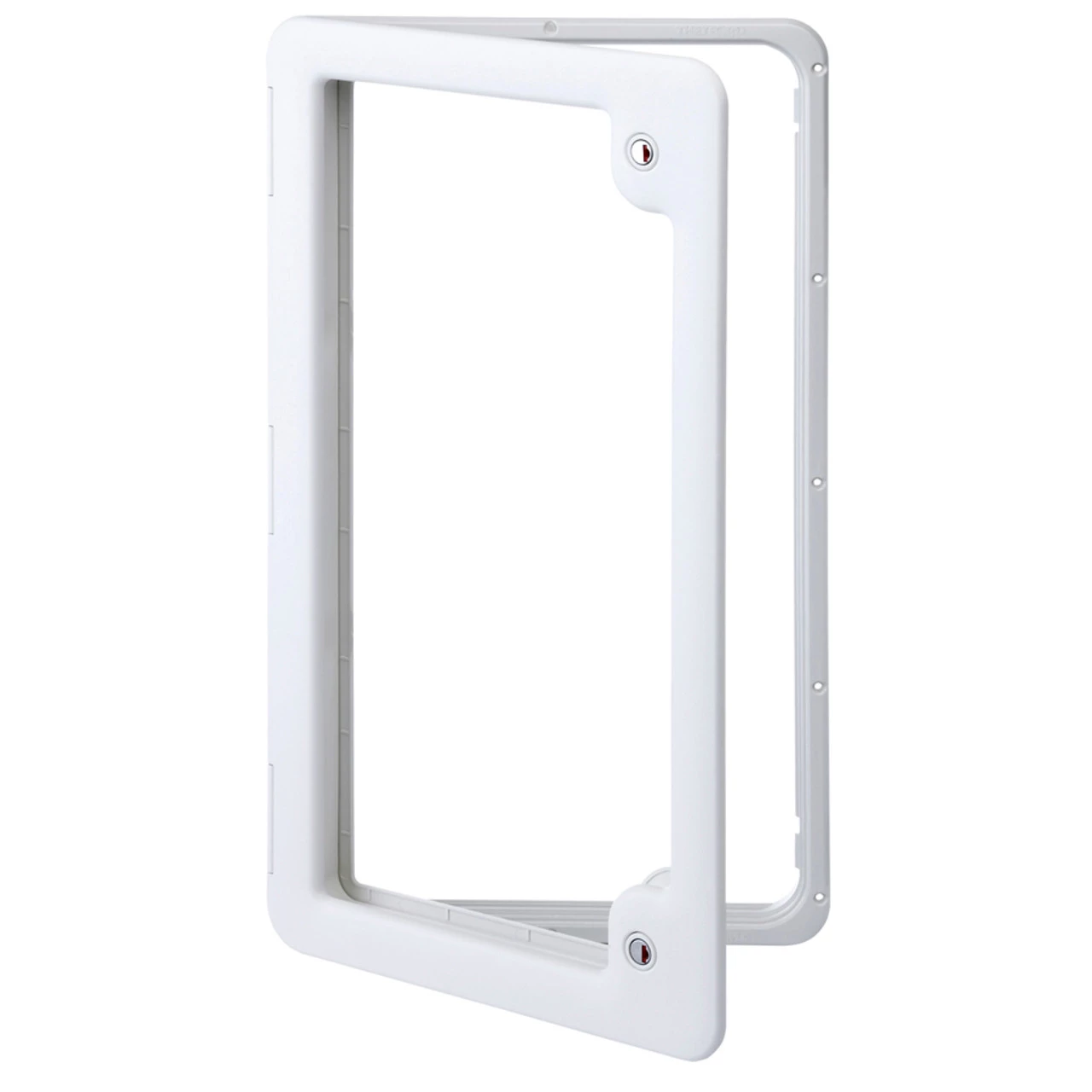

Thetford Service Door 4 Gas & Water Tank Hatch

Perfect for providing easy access to gas cylinders and water tanks the Thetford Service Door 4 provides an easy to install, secure solution for creating extra access to certain parts of your caravan or motorhome and is produced using high-grade, durable and lightweight plastics.

Thetford Service Door 4 Gas & Water Tank Hatch features

• Modern, streamlined appearance
• Watertight and UV resistant
• Double seal to ensure for optimum insulation
• Special push-button locks allow the doors to be closed securely, so they can’t spring open unexpectedly
• Easy self-installation: Thetford service doors are easy to install yourself, horizontally or vertically
• An easy step-by-step guide is supplied along with a template for creating the opening in the vehicle wall
• Thetford service doors are suitable for all walls with a thickness of between 23 and 39mm

Technical Specifications:

Application:

Door for gas cylinders and water tanks

Main dimensions (w x h):

700 x 395 mm

Door/opening dimensions (w x h):

630 x 330 mm

Cut-out dimensions (h x w):

648 x 348 mm

Possible wall thickness:

23 – 39 mm

Push button latch with lock:

Push button latch with lock

Rain diverter:

Rain diverter

Hinge position:

Side or bottom

Weight:

1.4 kg
