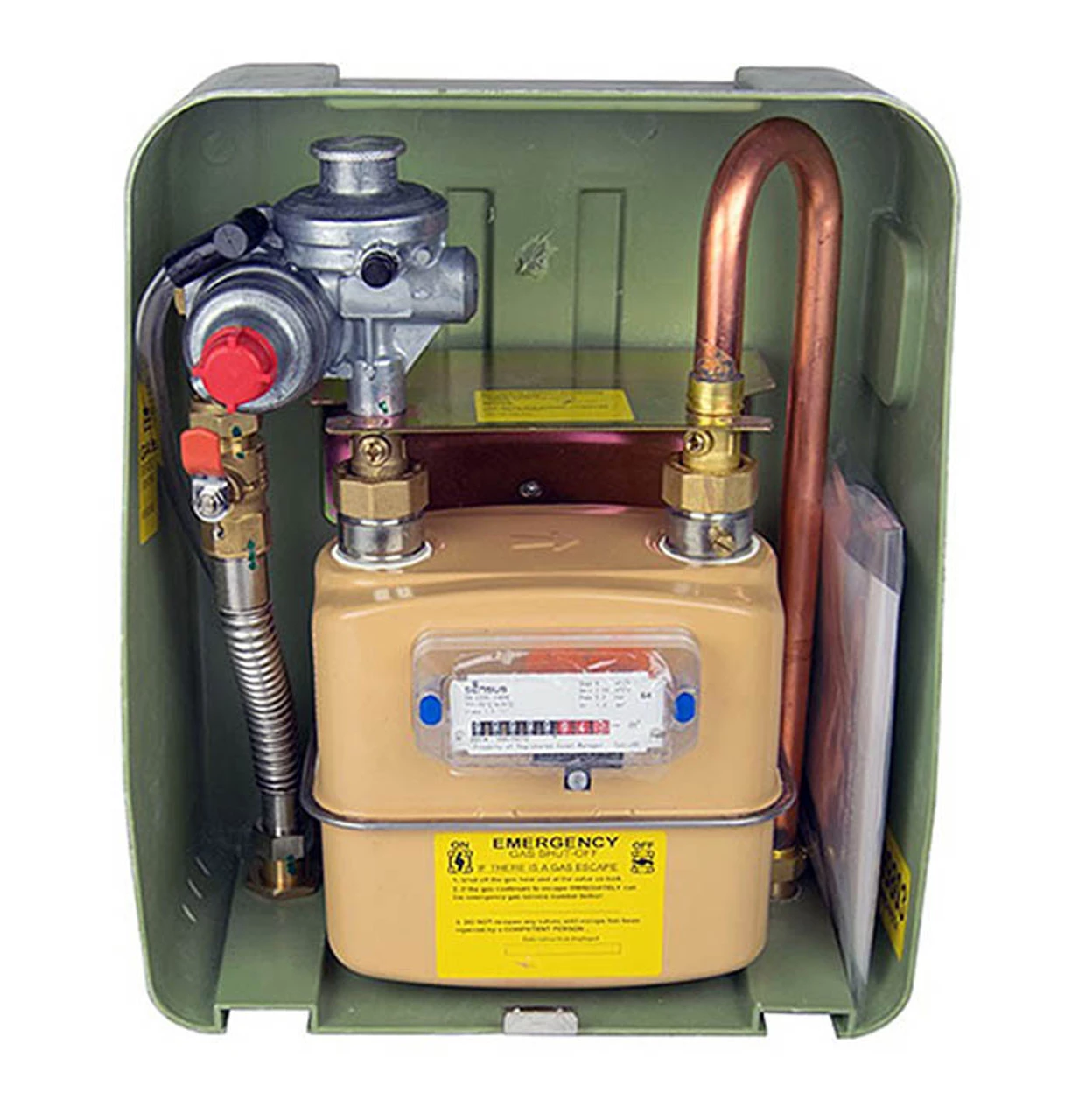

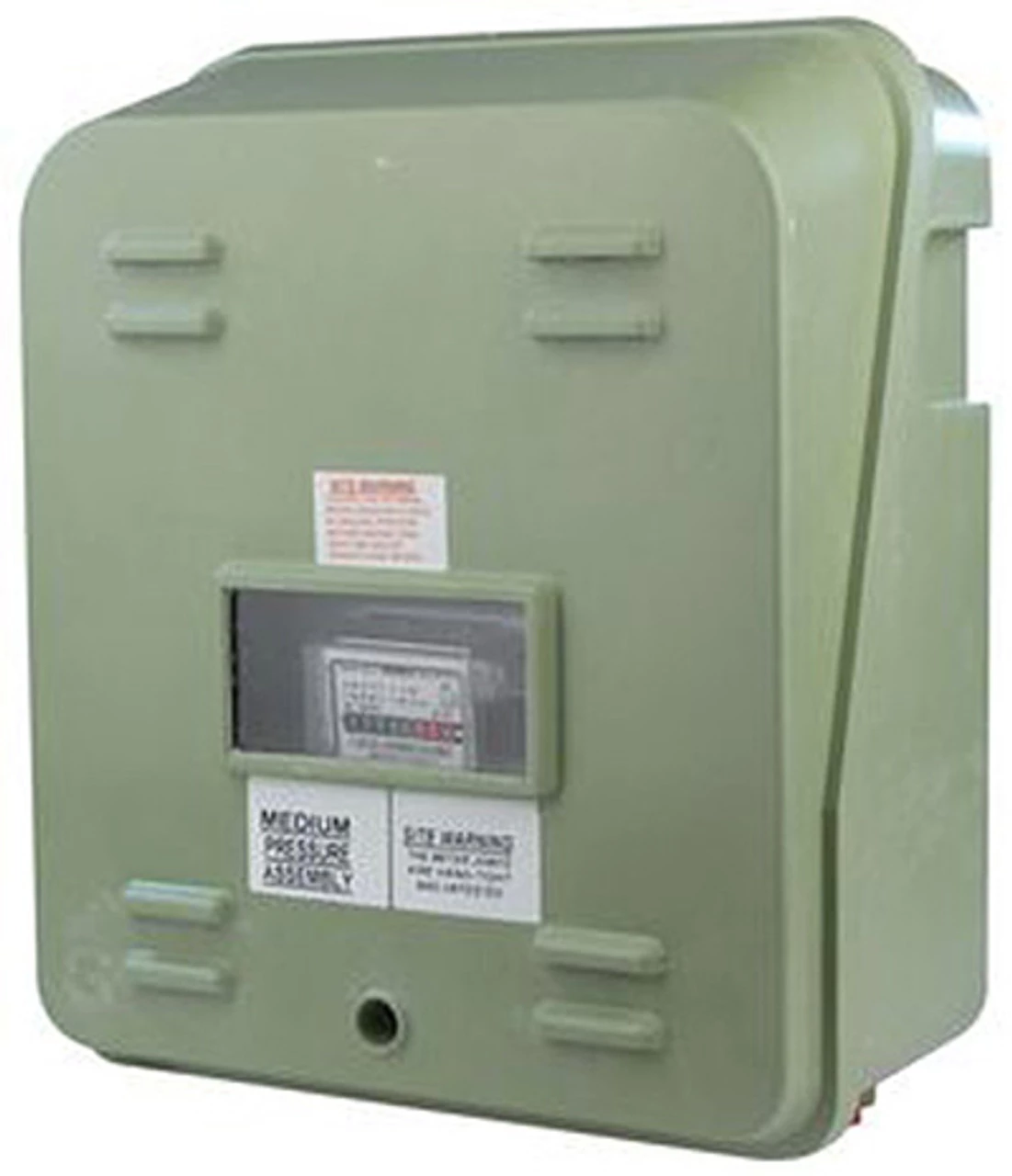

LPG G4 2nd Stage Medium Pressure Gas Meter Box
Assembly Kit for Mobile Home and Static Caravan

Able to be mounted on a caravan wall or stake, this stylish and compact 2nd stage G4 medium pressure meter box assembly is ideal for the secondary metering of LPG gas on caravan sites and includes the complete kit allowing for ease of installation.

Mobile Home and Static Caravan Medium Pressure G4 LPG Gas Meter Features

• G4 medium pressure gas meter, suitable for domestic use
• Complete LPG secondary gas meter kit for easy installation
• Great for static caravan and mobile home
• UPSO / OPSO 2nd stage regulator
• Meter inlet valve
• Inlet isolation valve
• 1/2″ female BSP inlet connection (bottom on left)
• 1/2″ female BSP outlet connection (bottom on right)
• Mounting stake included
• Meter box connection and key included

LPG Gas Meter Box Assembly Specification

• Type: G4 Domestic Gas Meter
• Gas: LPG
• Inlet Pressure: 0.75 – 1.50bar
• Operating Pressure: 37mbar
• Max Capacity: 6 m³/h (212ft³/h)
• Dimensions (HxWxD): 450mm x 400mm x 220mm
• Connections: 1/2″ BSP
• Meter Box Colour: Green
