Dometic S7P Hinged Windows And Pleated Blinds

Please Note: 50% of Dometic Seitz S7 windows back in stock – the majority of the remaining windows are expected back in stock in early/mid July. For urgent orders we recommend you call us to double check availability.

Overview

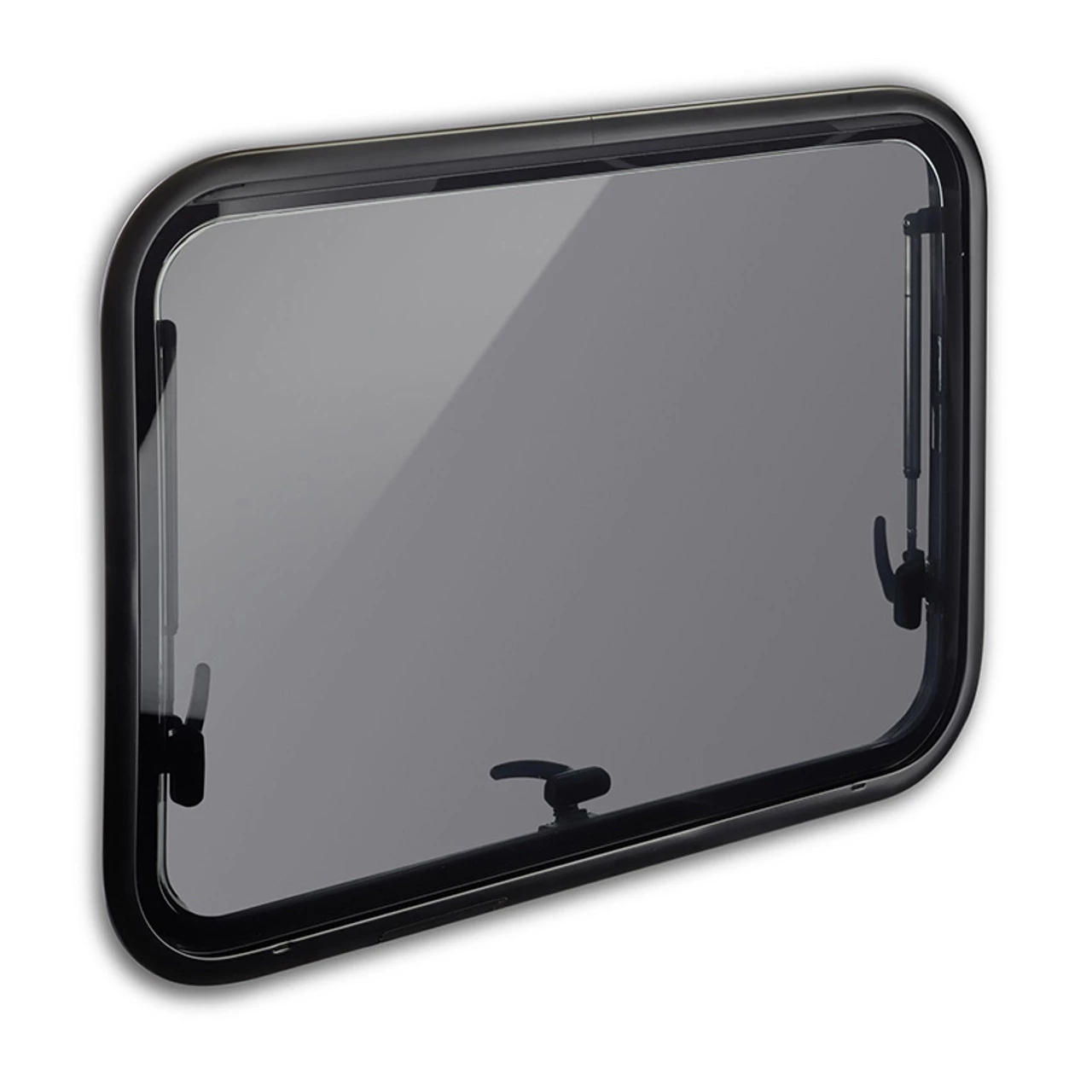

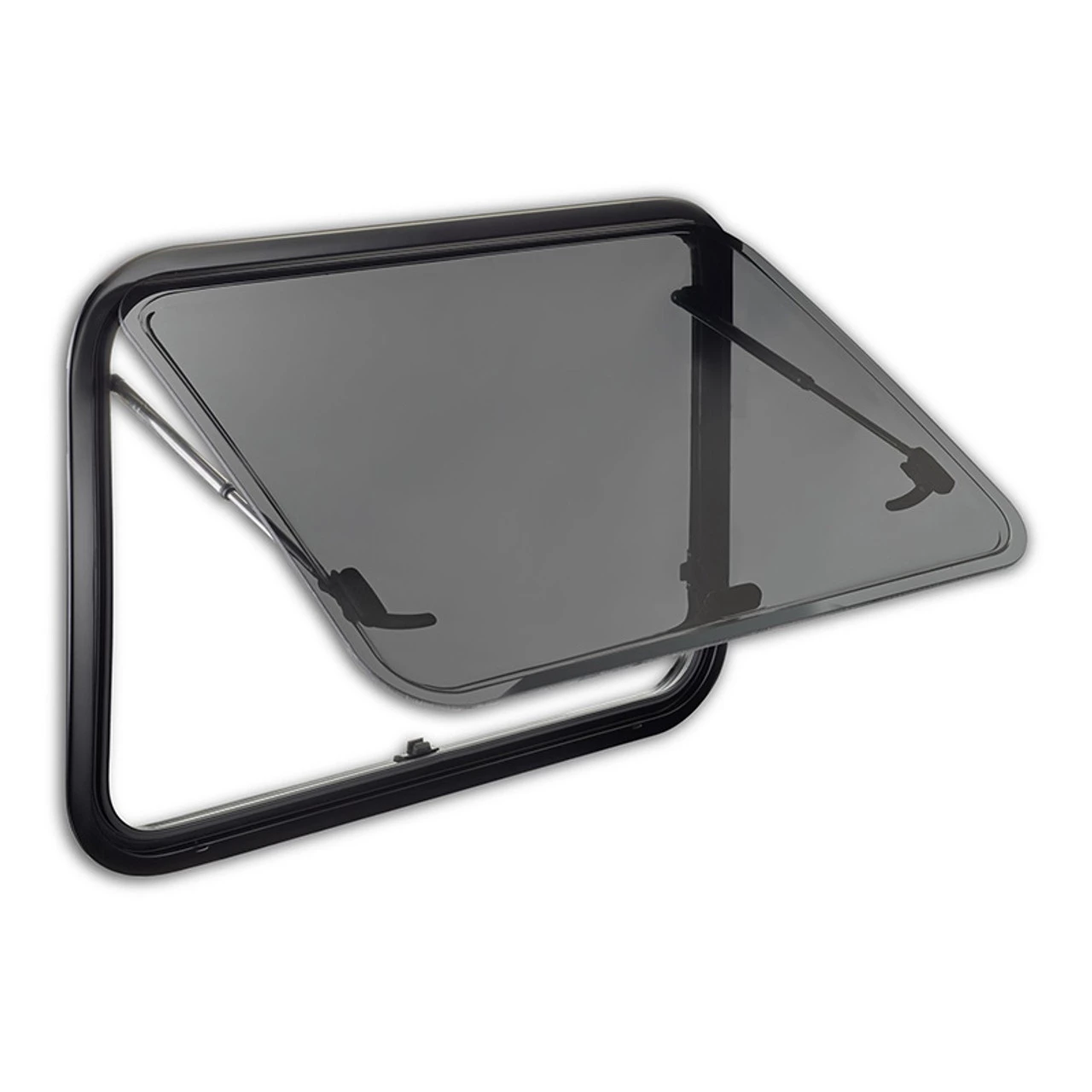

The Dometic SP7 hinged windows are a powder coated aluminium framed window, ideal for panel van campervan conversions and as replacements in your motorhome or caravan.

Lightweight yet premium

Specifically designed to reduce weight and to provide excellent insulation, whilst providing a high grade surface finish, the S7P hinged windows from Dometic are practical for use in you campervan motorhome or caravan.

Unique design system

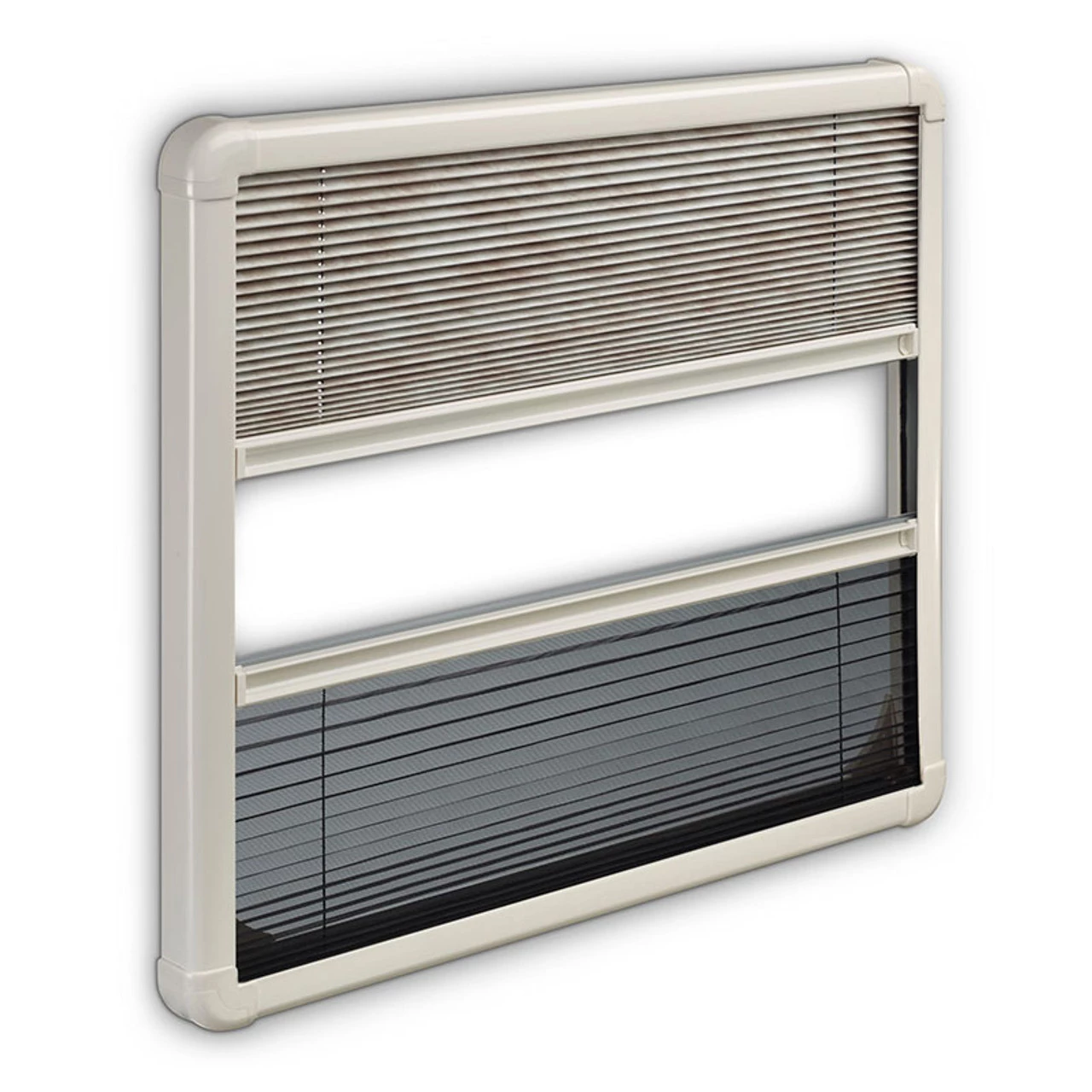

The unique design of the Dometic S7P windows, combined with an optional matching pleated blind system, make the S7P windows a genuine alternative to polyurethane windows in your campervan caravan or motorhome. The optional pleated blinds also incorporate a flyscreen for use in the summer!

Dometic S7P Window & Pleated Blind Features:

• Powder coated profiles for excellent insulation

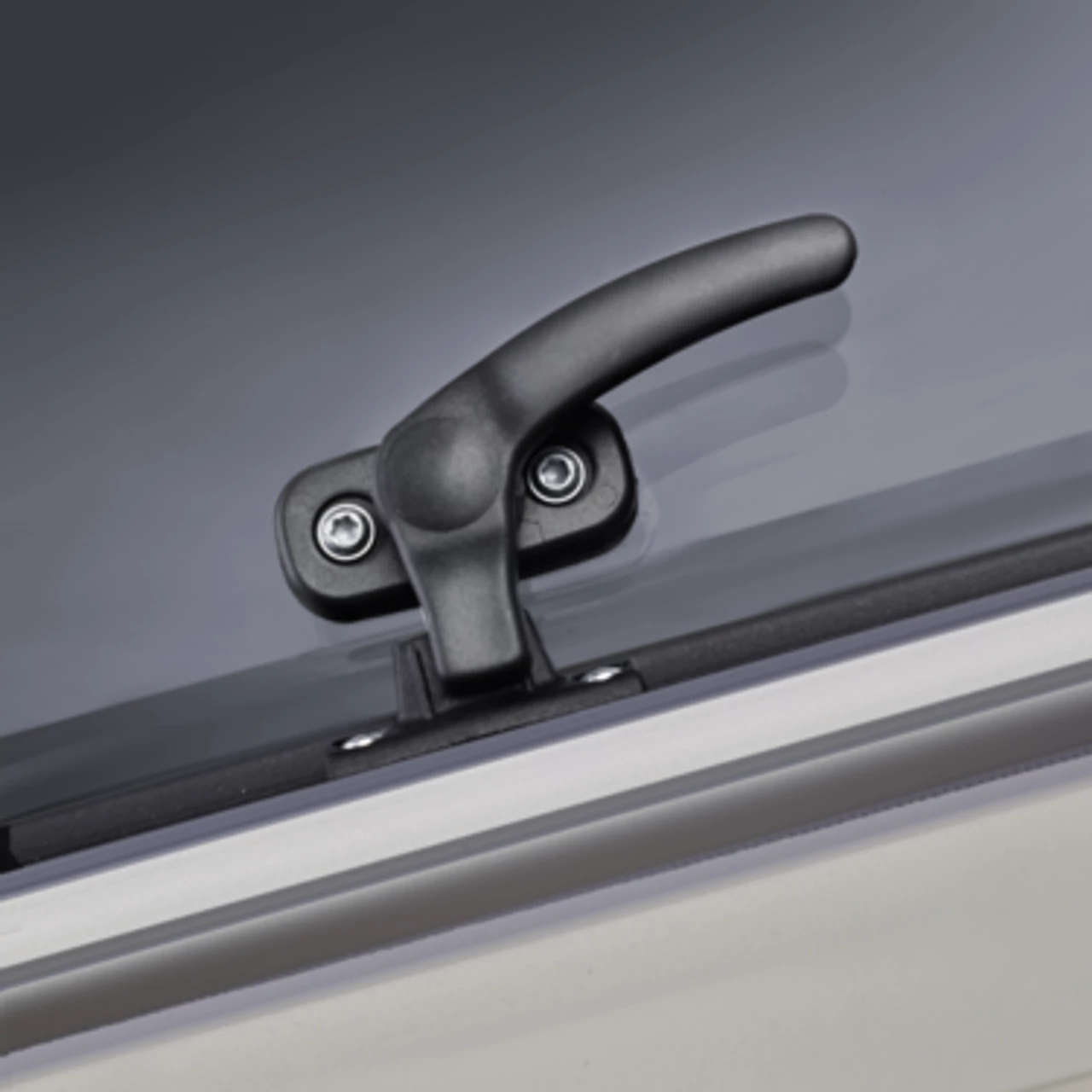

• Multi-locking system provides protection from intruders
• Double dark tinted acrylic glazing
• Curvature radius of 5000mm
• For walls 22-43mm thickness
• Aluminium weight reducing frames

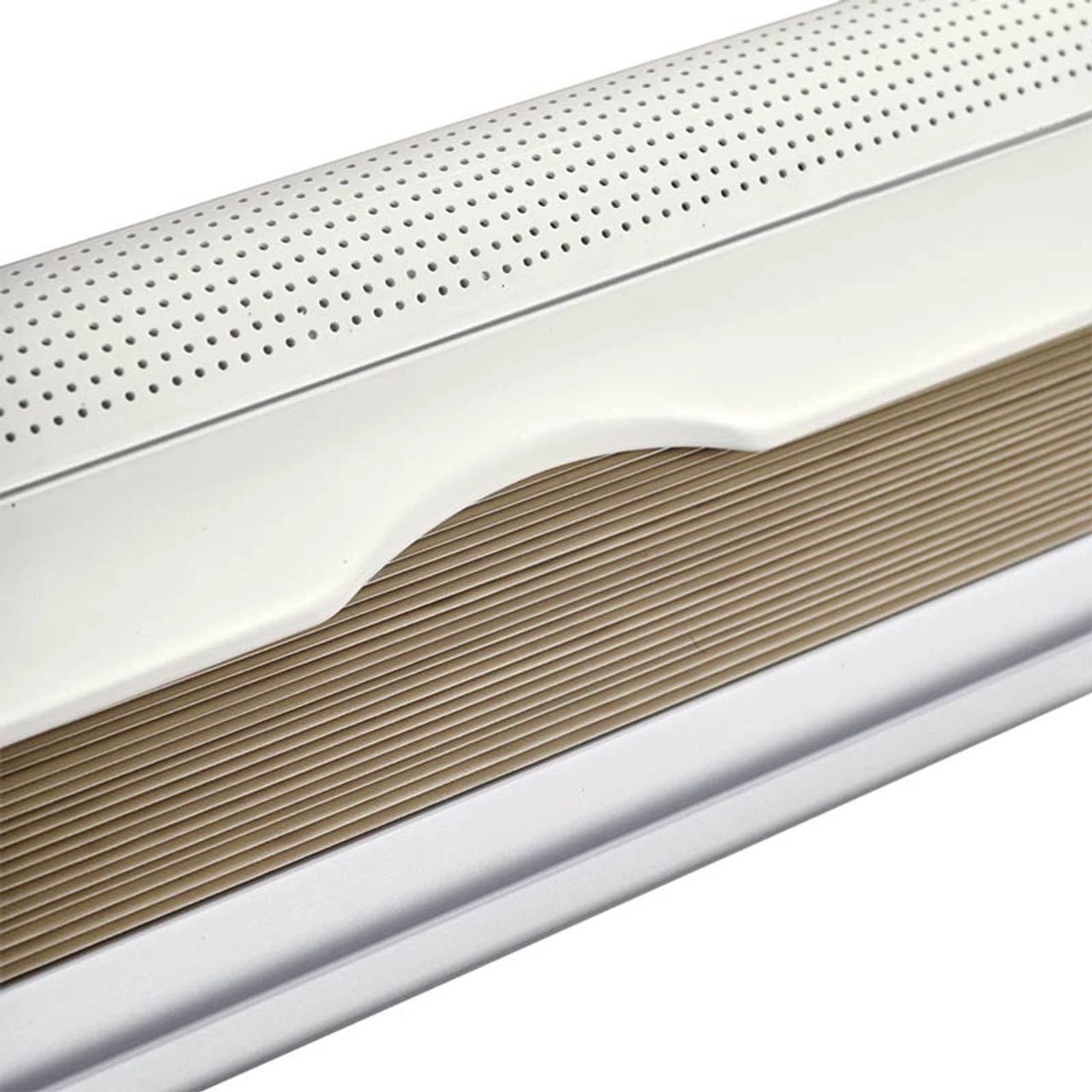

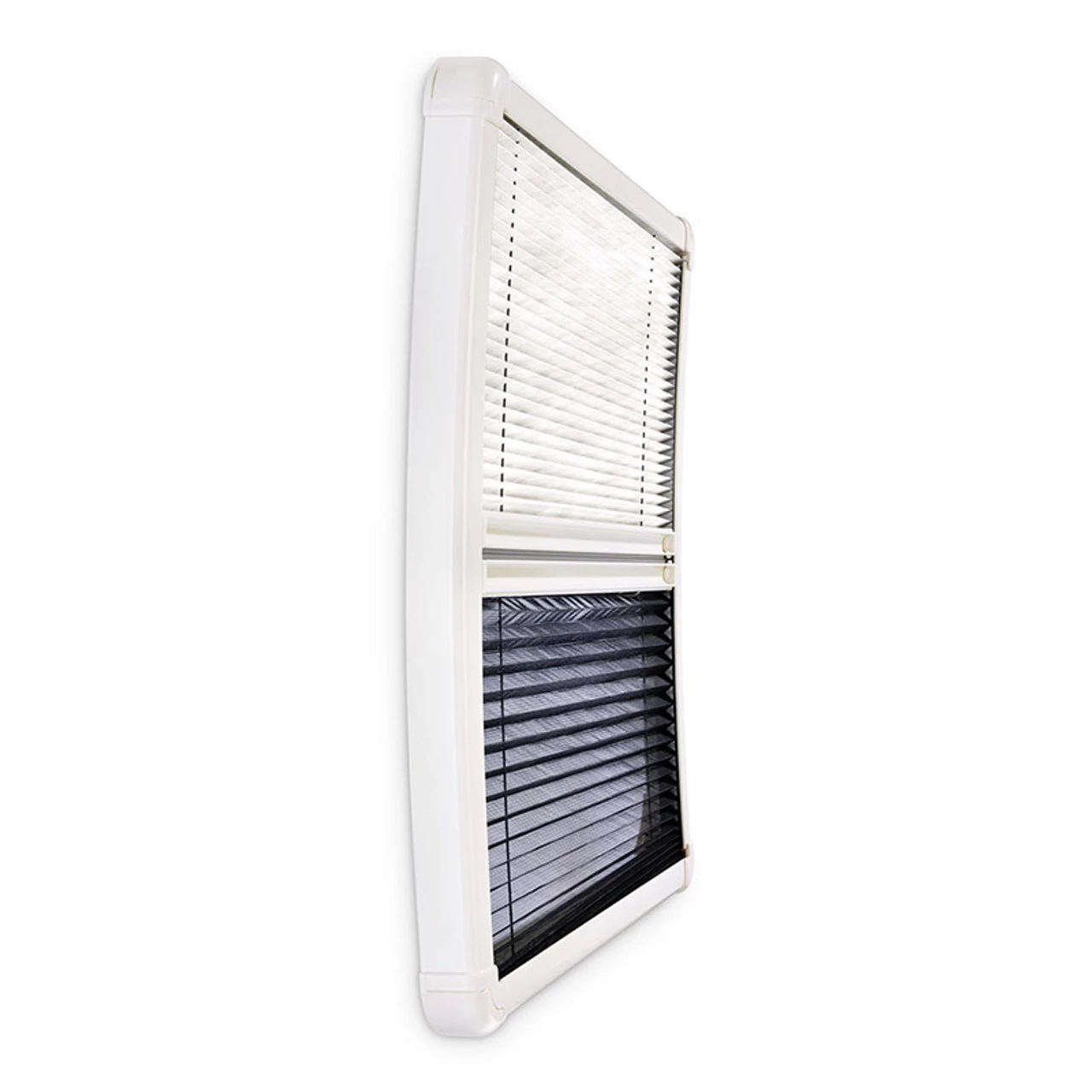

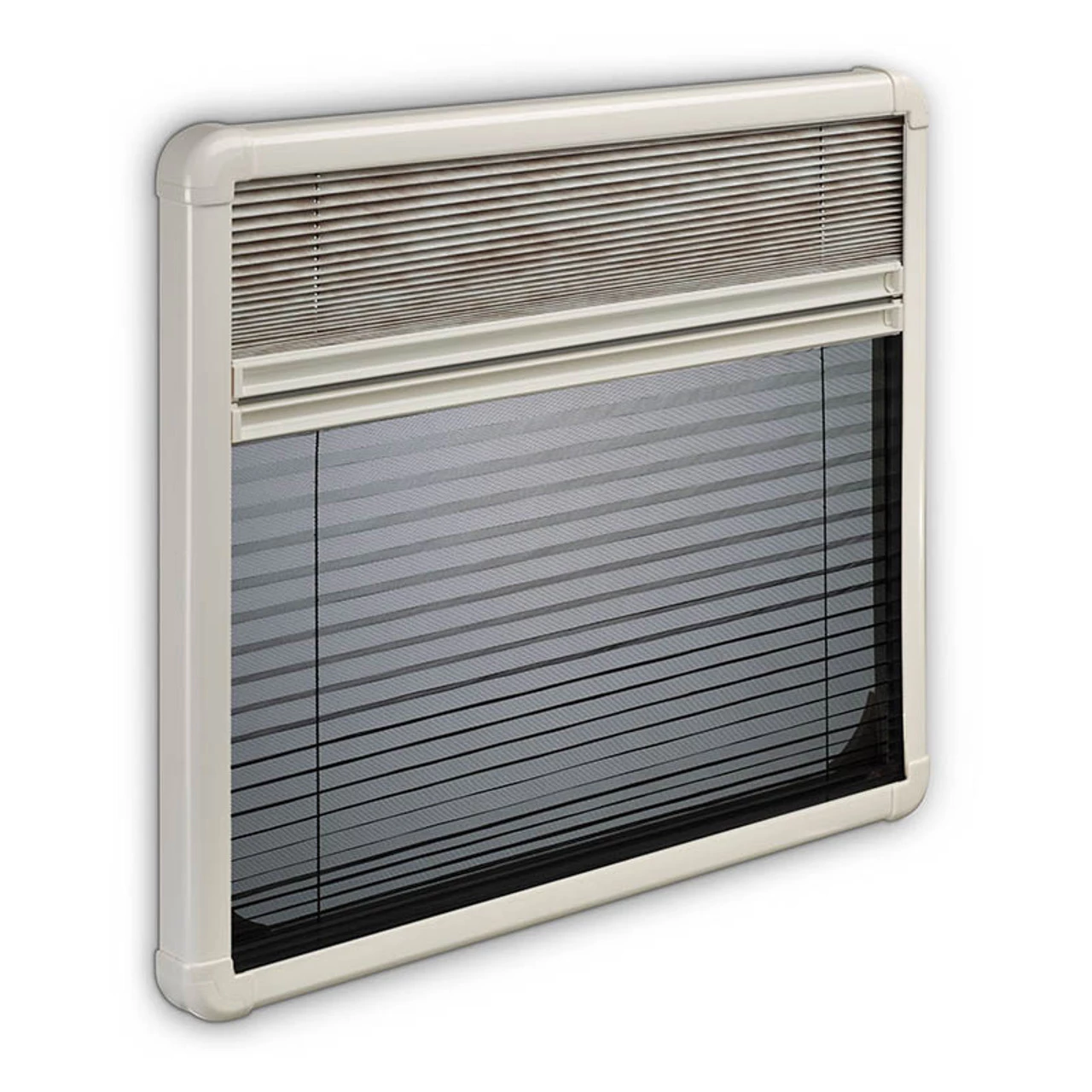

• Optional pleated blinds made to measure

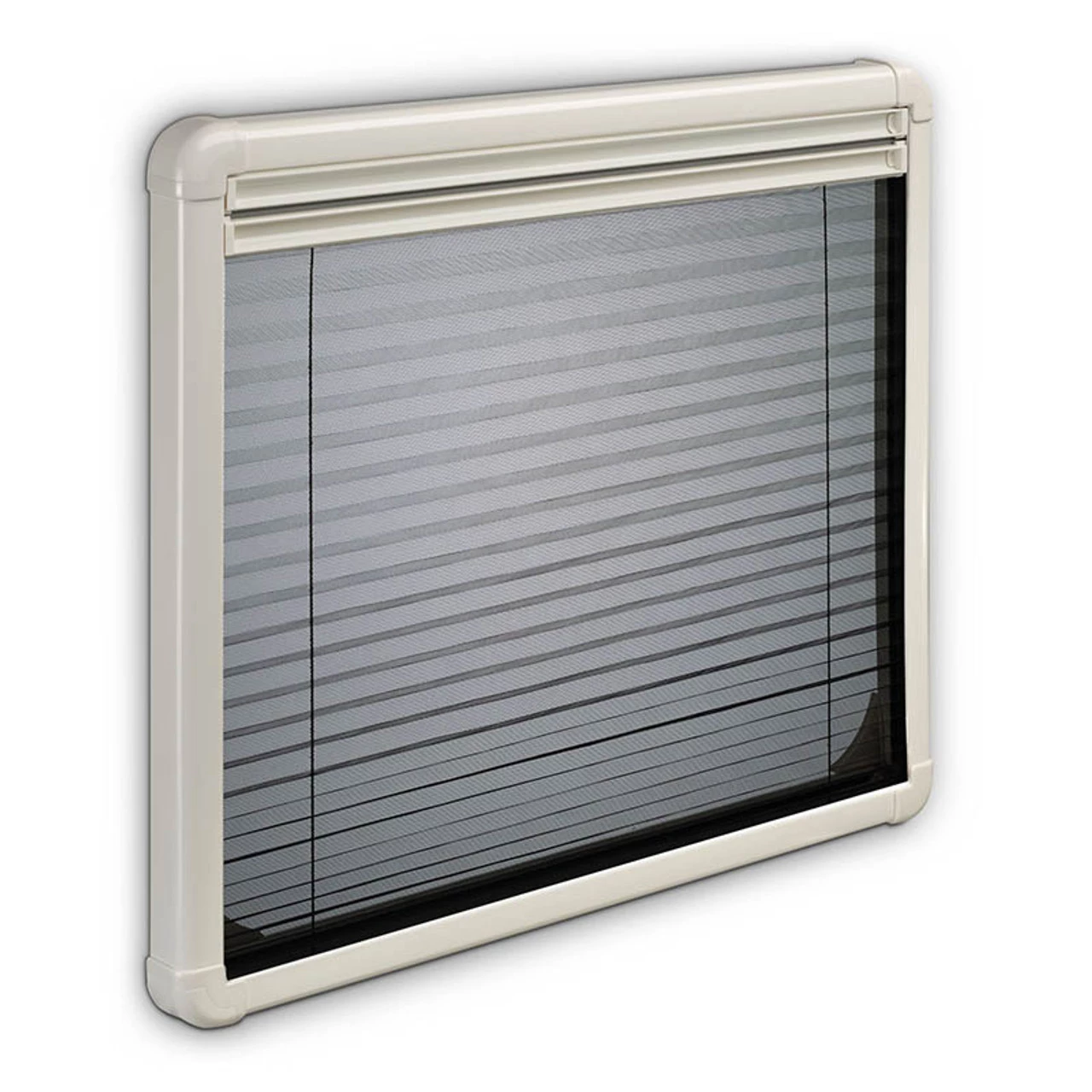

• Optional pleated blinds include flyscreen

Size WxH (mm)	Overall WxH (mm)	Space WxH (mm)	Clearance WxH (mm)
280×380	308×408	280×380	230×330
490×500	518×528	490×500	440×450
560×465	588×493	560×465	510×415
700×510	728×538	700×510	650×460
750×465	778×493	750×465	700×415
818×315	843×343	818×315	768×265
960×450	988×478	960×450	910×400
985×465	1013×493	985×465	935×415

Size WxH (mm)	Window Size WxH (mm)
233×352	280×380
443×472	490×500
513×437	560×465
653×482	700×510
703×437	750×465
771×287	818×315
913×422	960×450
938×437	985×465



Technical Specifications:
